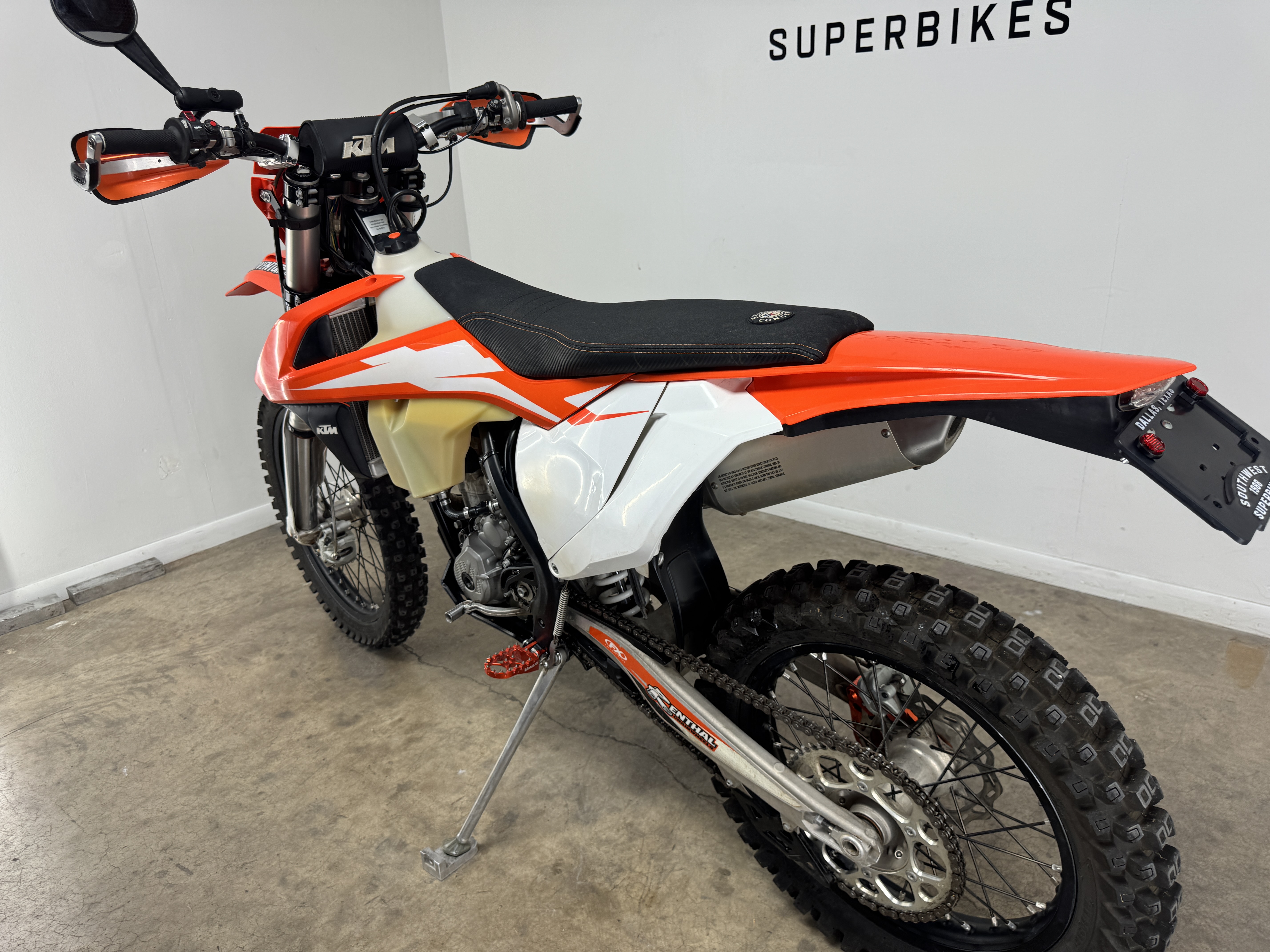

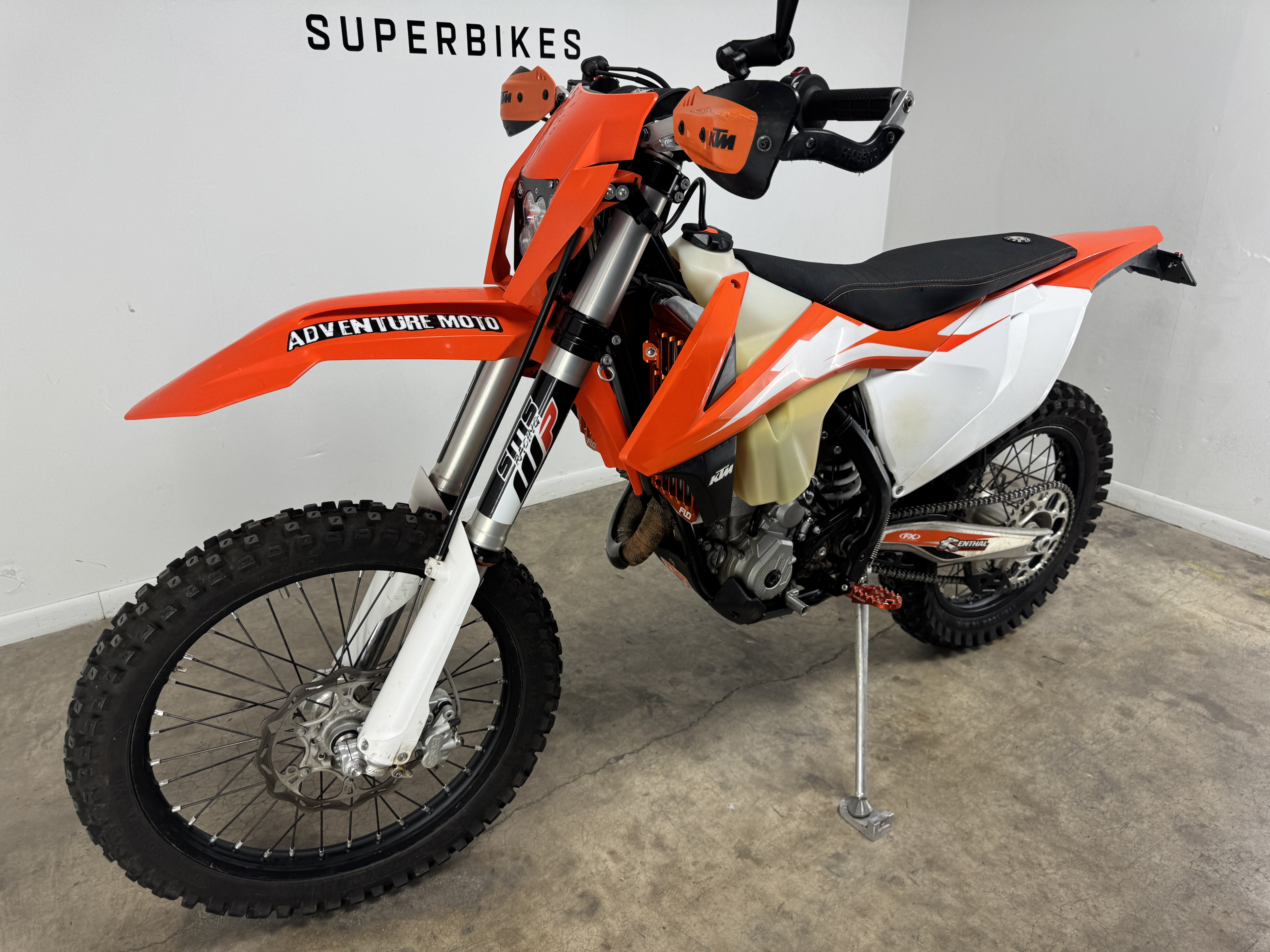

2016  KTM  350 XC-F  - 253133

2016 KTM 350 XC-F

The Ultimate Combination

With the arrival of the new generation 350 XC-F the success story can continue. The nimble but powerful bike comprises of almost as much power as a 450, but with the agility of a 250 so the basic idea is easily summarized, and has been a concept with success from the start.

Features May Include:

• ENGINE

The new DOHC (Double Overhead Camshaft) engine of the 350 XC-F features a completely new construction in order to make it even more compact and powerful than before. Fitted with the latest electronic fuel injection system, it has a very wide and usable power spread while still delivering high performance. The new design has made the engine 20 mm shorter than before, while reducing the weight by 2 lbs.

• 350 SX-F ENGINE CASES AND COVERS

The completely new design of the die-cast engine cases allowed for a much more centralized shaft configuration, raising the crankshaft by 6 mm closer to the bike's center of gravity. Newly designed engine covers made of magnesium feature an advanced surface structure, which reduce the wear caused by the rider's boots.

• ENGINE MANAGEMENT SYSTEM

The completely reworked Keihin Engine Management System, with electronic fuel injection, features an all-new 44 mm throttle body, which provides instantaneous response and maximum performance thanks to a revolutionary injector position. The new ECU (Engine Control Unit) includes a launch control for more efficient starts with the provision of different maps according to the gear sensor selection. In addition, the rider can activate an optional map for a different power delivery via the map select switch on the handlebar.

• BATTERY AND WIRING HARNESS

As in the past, all new XC-F engines are fitted with the proven electric starter - a unique KTM feature and a major benefit at all levels of motocross racing. For 2016 the XC-F range fits a super compact and lightweight lithium-ion starter battery, providing safe starting of the engine while reducing the weight significantly.

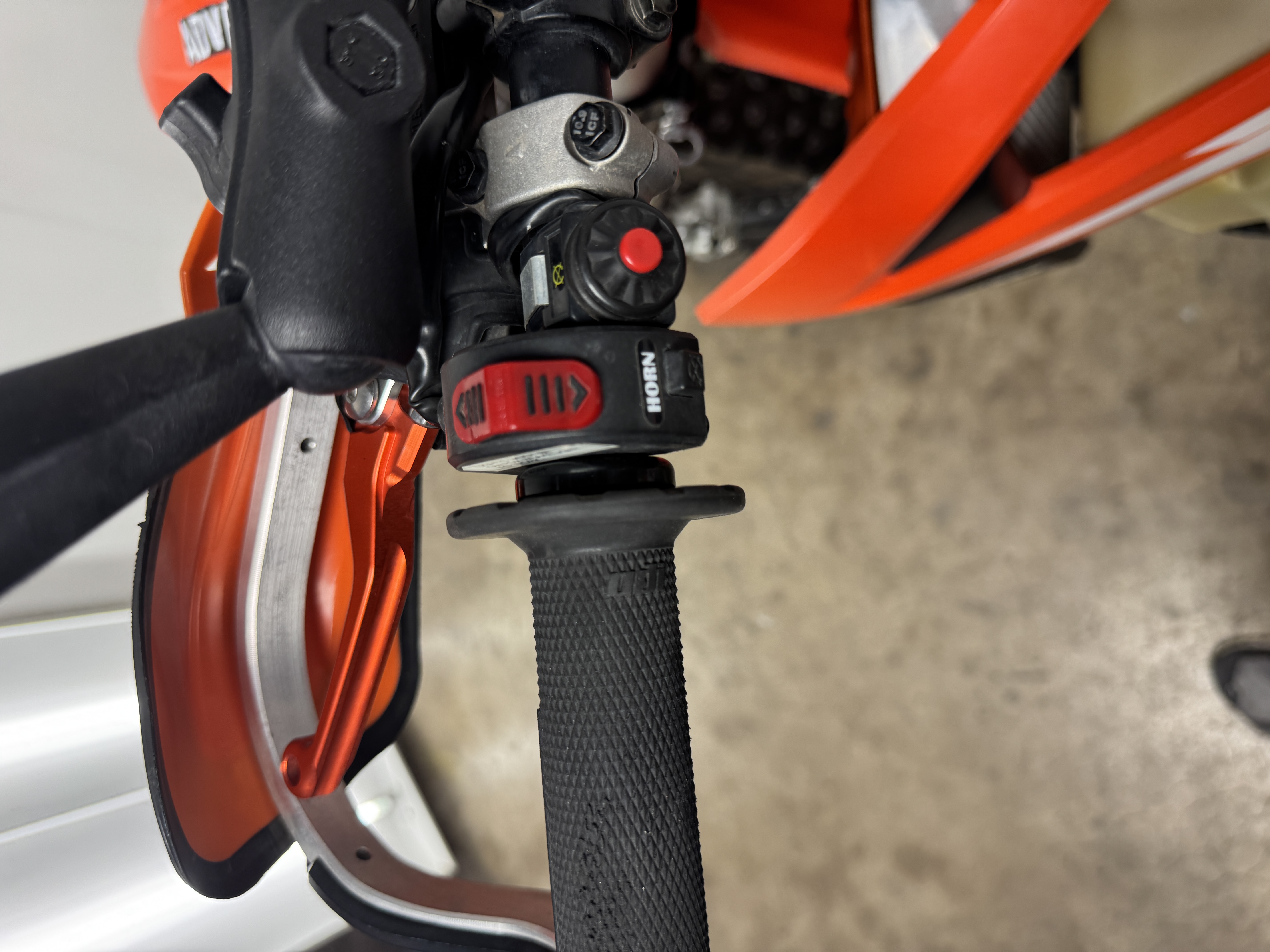

• HANDLEBAR

The new generation XC-F models are equipped with a new tapered handlebar made of high-strength aluminum by NEKEN, which is fixed in a new rubber damped handlebar clamp allowing the handlebar to be mounted in two different positions. All 4-Stroke models feature a new throttle assembly with model-specific throttle cams for different opening characteristics and new ODI grips featuring lock-on fixing clamp on the left-hand side. In addition the handlebar-mounted map switch allows easy selection of different maps and the activation of a launch control.

• FUEL TANK

All XC-F models have new lightweight polyethylene tanks fitted with an integrated fuel pump system and capacity of 2.25 gallons. Inside threads on the filler cap make for an easy and reliable closure.

• MONOSHOCK

The new generation of monoshock made by WP Suspension has been developed for the new XC models in conjunction with the new frame and swingarm architecture, including the reworked linkage system and the new WP forks. The new body features a revised reservoir for a larger gas chamber to reduce performance fade. The linkage system has also been reworked with a revised geometry and longer pull rods.

• WHEELS

The 350 XC-F is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.
